Elastomer Bellow Mechanical Seals
ZQM4 mechanical seal
- mechanical seal

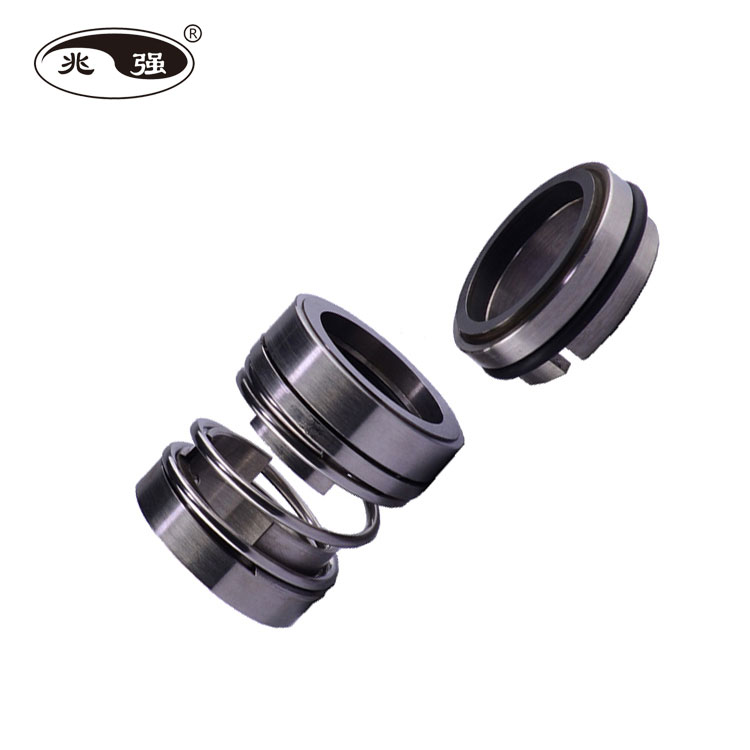

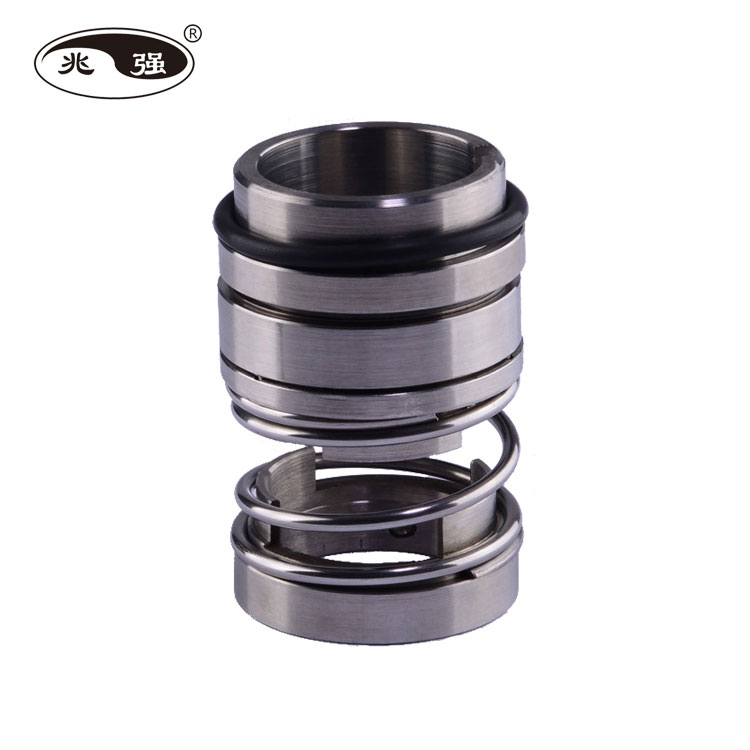

- Product description: ZQM4 mechanical seal
| Appication Scopes | |
| Medium | Oil, water, noncrystalline acids, bases, salts, high viscosity fluids, etc. |
| Pressure | <1MPa |
| Temperature | -20-200°C |
| Linear vilocity | <10m/s |
| Viscosity | ≤150000CP |
| Shaft diameter | 18-120MM |
Structural Features
1. Single spring, fork drive, anti blocking ability is strong. When used, it has nothing to do with the direction of rotation.
2. Auxiliary sealing ring according to different circumstances, can choose rubber O-ring, PTFE V-ring or PTFE wedge-shaped ring.
3. Conform to ISO3069, DIN24960 and GB6556 standards, universal.
4. Can own or mutual composition of double face seal.
5. Please consult us for specific materials selection.
