Pharmaceutical Industry

  • ZQCS Transmission seal
  • ZQCS Transmission seal
ZQCS Transmission seal  ZQCS Transmission seal

ZQCS Transmission seal

  • Transmission seal
  • Oil Transportation Seal
  • Oil tray

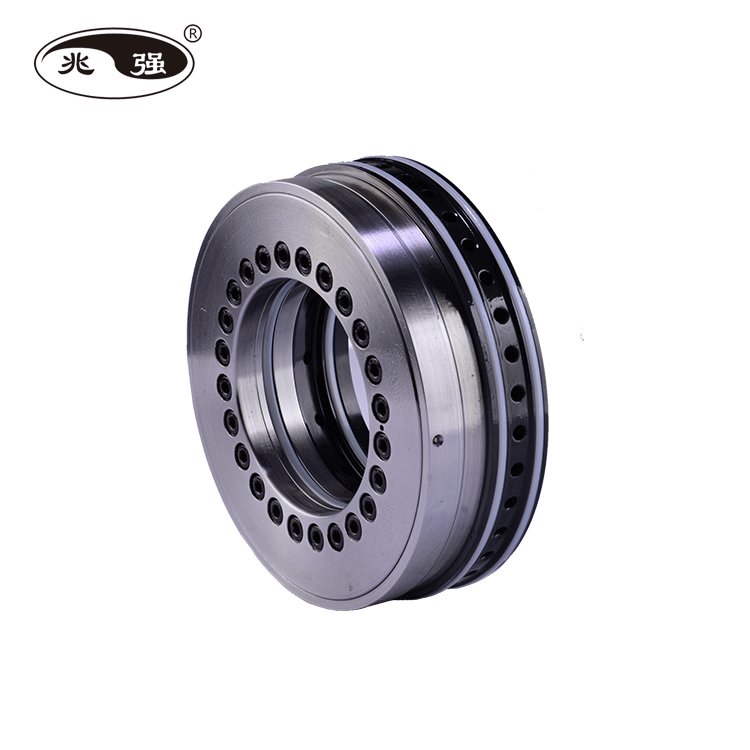

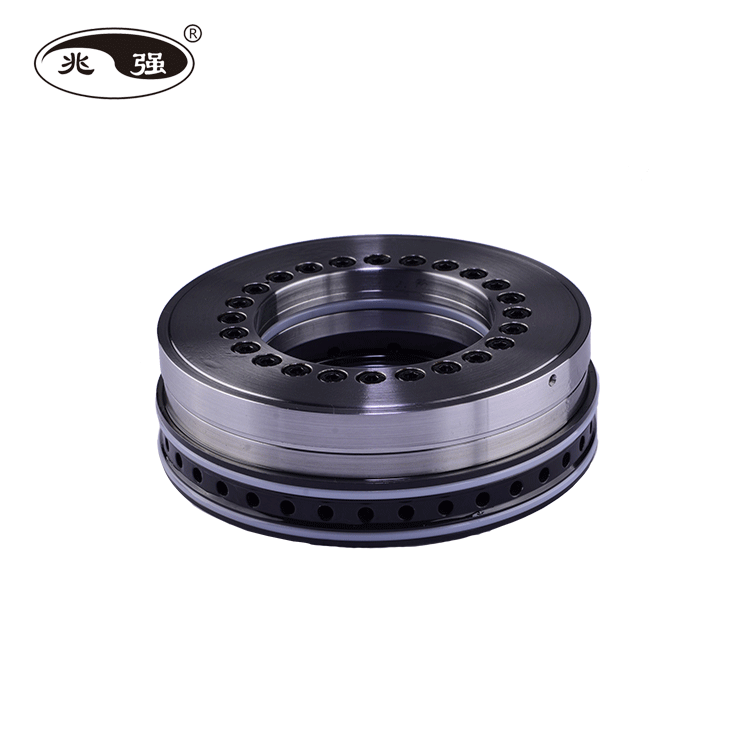

  • Product description: ZQCS Transmission seal
  • INQUIRY
Technical parameters:
140 Axis Diameter
Work pressure: 5MPa
Oil flow rate: 489L/min
Axis speed: 1200 rpm
Axis Diameter: _140 mm
Reciprocating speed of centrifuge: 30-40 times/min
Medium: 32 # Mechanical Oil

80 Axis Diameter
Work pressure: 3.5-4.5 MPa
Oil flow rate: 232L/min
Axis speed: 1470 rpm
Axis Diameter: 80mm
Reciprocating speed of centrifuge: 30-70 times per minute, pushing distance 50 mm
Medium: 32 # Mechanical Oil

Schematic diagram:
