Cartridge Mechanical Seals

  • ZQMJB1 mechanical seal
  • ZQMJB1 mechanical seal
ZQMJB1 mechanical sealZQMJB1 mechanical seal

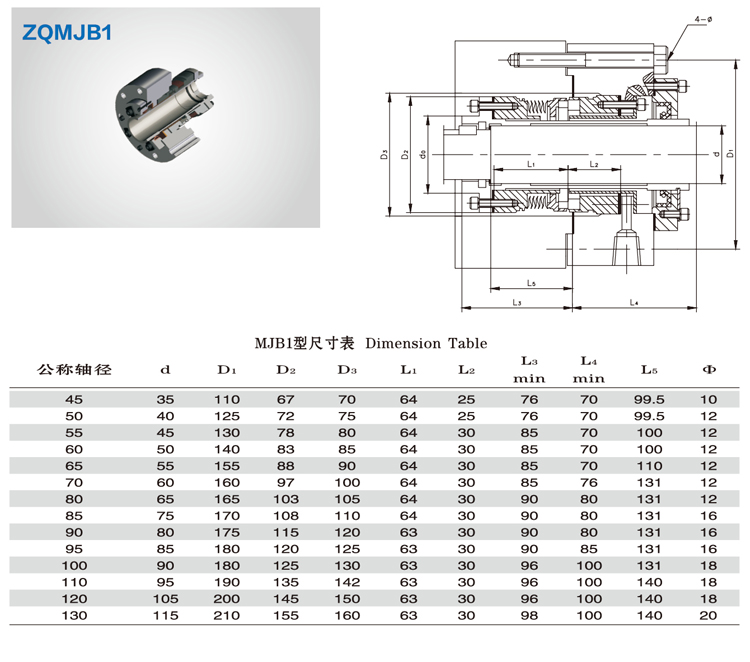

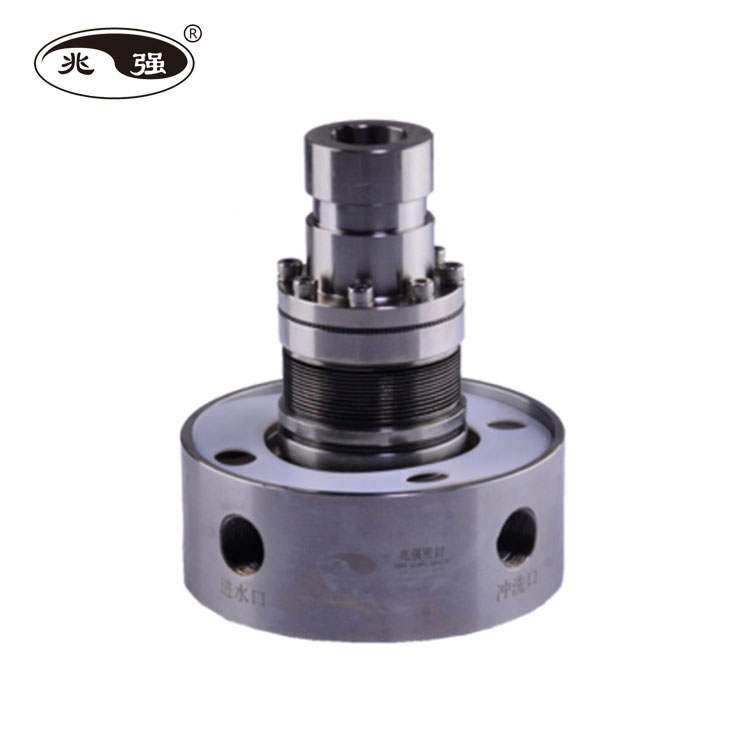

ZQMJB1 mechanical seal

  • Forced external cooling metal bellows seal
  • Forced external circulation cooling system
  • assembly seal
  • metal bellows seal
  • Product description: ZQMJB1 mechanical seal
  • INQUIRY

Application Scope

Medium: high temperature oil, bitumen, water and other solutions.

Temperature: -100~450 C

Pressure: <2.5MPa

Line speed: <15m/s

Axle diameter: 45~130mm

Structural features

Assembly structure, low expansion coefficient stainless steel inlaid cemented carbide or SiC is used for sealing surface, special gasket compression form is used for auxiliary sealing ring, and forced external circulation cooling system is added. This type of seal is especially suitable for high temperature residue pump and asphalt pump in refinery.
