Cartridge Mechanical Seals

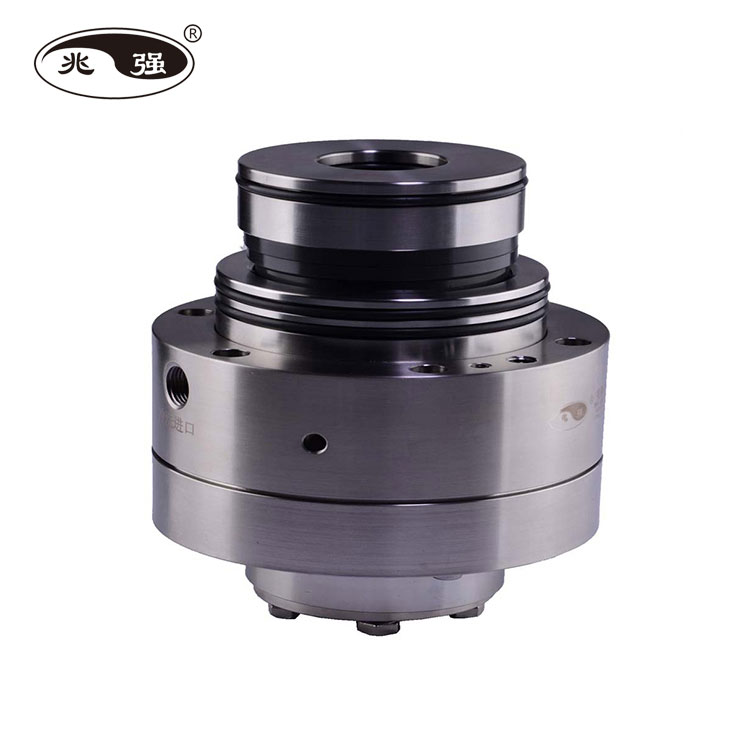

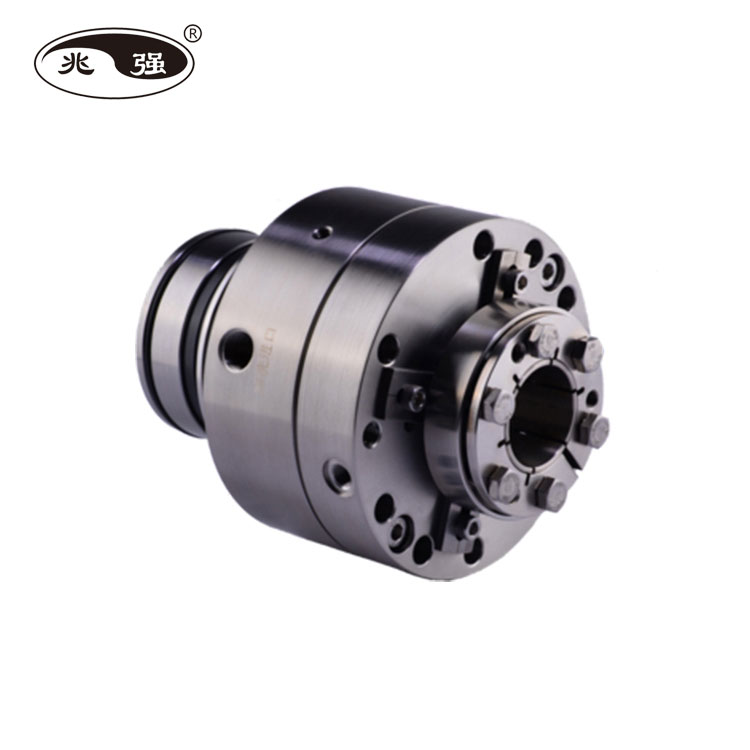

ZQJBM double end face mechanical seals for agitators
- slit sleeve holding shaft transmission
- double-end surface assembly mechanical seal
- external cooling water
- Product description: ZQJBM double end face mechanical seals for agitators
Application Scope
Medium: gypsum slurry, etc.
Temperature: <120 C
Pressure: <1MPa
Line speed: <10m/s
Structural features

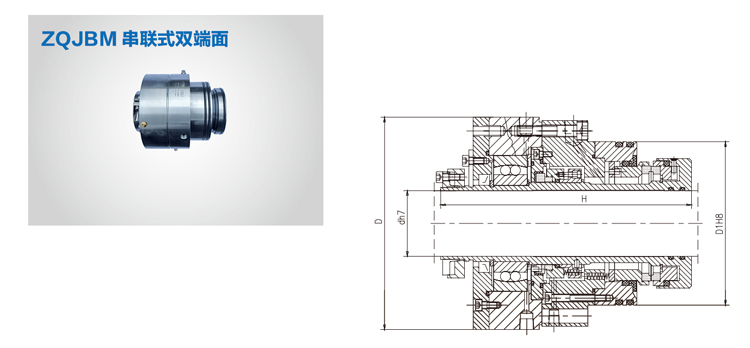

Mechanical seal structure is double-end surface assembly type, external cooling water structure, slit sleeve holding shaft transmission, reliable transmission.
Directions
1. External cooling water can be used as ordinary tap water, and the pressure is controlled below 0.3 MPa.
2. Open the cooling water 5 minutes before starting the pump and close the cooling water 5 minutes after stopping the pump.
